Casio fx-CG 50: Functions as Polar Graphs

Casio fx-CG 50:  Functions as Polar Graphs


Introduction


The function y = f(x) and equations in the form f(x,y) = g(x,y) can be transformed into its polar form by applying the transformations:


x = r cos Θ

y = r sin Θ


It can be a challenge getting the transformed equation in the form r = w(Θ), but it seems to work best where f(x,y) and g(x,y) are polynomials.


The following are graphs generated with a Casio fx-CG 50:


Function, y(x):   green with connected line

Polar Function, r(Θ):  blue with dots


Graphs


# 1:

y = x^2, r = sin Θ ÷ (cos Θ)^2 and r = 0





# 2:

y = x^3, r = ±√(sin Θ) ÷ (cos Θ)^(2/3) and r = 0





# 3:

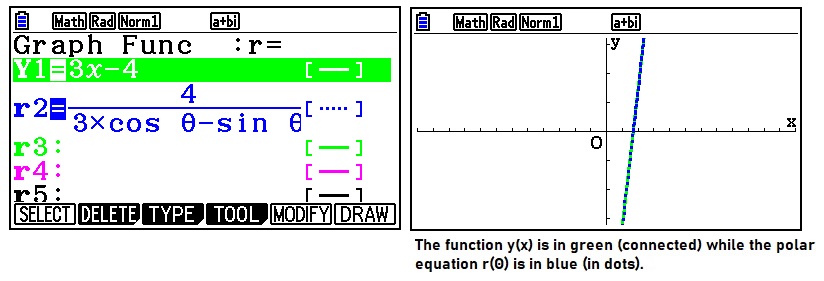

y = 3x - 4, r = 4 ÷ (3 cos Θ - sin Θ)





General:  y = ax + b, r = -b ÷ (a cos Θ - sin Θ)


# 4:

y = 1/3 * (x - 4), r = -4 ÷ (3 sin Θ - cos Θ)





General:  ay = x + b, r = b ÷ (a sin Θ - cos Θ)


# 5:

y = ±√x, r = cos Θ ÷ (sin Θ)^2





# 6:

y = x^2 + x, r = tan Θ ÷ cos Θ - 1 ÷ cos Θ





# 7:

y = 1/x, r = √(1 ÷ (cos Θ sin Θ))
