Fun with the Radio Shack EC-4004

Fun with the Radio Shack EC-4004


Complex Number Multiplication

(a + bi) * (c + di) = (a*c – b*d) + (b*c + a*d)i

Store values in the following memory registers before running the program:

K1 = a
K2 = b
K3 = c
K4 = d

Output is stored in registers K5 (real part) and K6 (imaginary part).

Program:

Kout 1
*
Kout 3
-
Kout 2
*
Kout 4
=
Kin 5
HLT
Kout 2
*
Kout 3
+
Kout 1
*
Kout 4
=
Kin 6

Example:

(-8 + 3i)*(6 + 3i)   (K1 = -8, K2 = 3, K3 = 6, K4 = 3)

Result:  -57 – 6i (K5 = -57, K6 = -6)]

Product of Integers

The following program will between and b:  Product = a * (a + 1) * (a + 2) * … * b

P = Π n from n = a to b

Store values in the following memory registers before running the program:

K1 = a
M = b
K2 = 1 (store 1 in K2 each time)

Program:

Kout 1
Kin* 2
1
Kin+ 1
Kout 1
X ≤ M
Kout 2

Example:  Π n from n = 5 to 8:  P = 5 * 6 * 7 * 8

Store 5 in K1, 8 in M (Inv Min), 1 in K2.

Heron’s Formula



The program calculates the area of the triangle.  Store the length of the sides in registers K1, K2, and K3.  The register K4 is used in the calculation and ultimately have the area.

K4 = (K1 + K2 + K3)/2

Area = (K4 * (K4 – K1) * (K4 – K2) * (K4 – K3))

Program:

Kout 1
Min
Kout 2
M+
Kout 3
M+
MR
÷
2
=
Min
Kin 4
MR
-
Kout 1
=
Kin* 4
MR
-
Kout 2
=
Kin* 4
MR
-
Kout 3
=
Kin* 4
Kout 4
Kin 4

Example:

K1 = 16.4, K2 = 13.8, K3 = 11.4

Area = 77.60164947

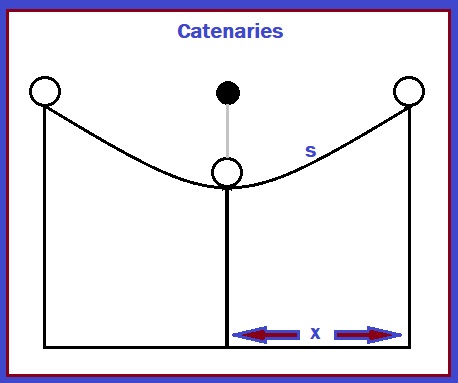

Catenaries



The program calculates the length of the wire in a catenary (2*s).

Input:

K1 = Horizontal Tension
K2 = Weight of the wire (lb-ft, N, etc)
K3 = half of the distance between the poles

Program:

Kout 1
÷
Kout 2
*
(
Kout 2
*
Kout 3
÷
Kout 1
)
sinh
=
*
2
=

Example:

Input:

K1 (H) = 40N
K2 (weight) = 0.227 N
K3 (half distance between poles) = 32.6 m

Result: 65.5726 m

Source:  Chris M. Alley and Brenda M. Cornitius TI-36 Solar Guidebook Texas Instruments. 1985.

Mass Dragged on the Table by a Pulley



The program solves the following systems:

T – M1*a = μ*M1*g
T + M2*a = M2*g

Input:

K1 = mass 1 in kg
K2 = mass 2 in kg
K3 = friction of the table factor (μ)

Output:

K4 = acceleration (a) m/s^2
K5 = tension of the rope (N)

Tension is displayed first, then acceleration

SI units are assumed, where g = 9.80665 m/s^2 (Earth’s gravity constant)

Program:

9
.
8
0
6
6
5
Kin 4
*
(
Kout 2
Kin 5
-
Kout 1
Kin+ 5
*
Kout 3
)
=
÷
Kout 5
=
Kin 5
HLT
Kin- 4

Example:

K1 = 4.3 kg (mass 1)
K2 = 6.4 kg (mass 2)
K3 = 0.1 (friction μ)

Results:

T = 27.7445 N (tension, K5)
a = 5.47156 m/s^2 (acceleration, K4)

Eddie
