A Comparison of Algorithmique vs. Python Turtle (Casio fx-92 Collège vs. Numworks)
The Casio fx-92 Collège from France has an algorithm mode, which is essentially a program mode. The language is designed to be an easy-to-use program and can be viewed online as Scratch program code. I would love to see Casio sell this calculator world wide instead on just France, I think this calculator would give an excellent introduction to coding (at any age).
On today’s blog, I’m going to compare the Algorithmique programming language to Python’s Turtle module in drawing three simple shapes. The calculator I’m using for Python is Numworks. I’m forever grateful to Google Translate, as I am not fluent in French.
The Commands
Casio fx-92 Collège Algorithmique French |
Casio fx-92 Collège Algorithmique French |
Python Turtle Command (Numworks) |
Python Built-In Command |
Avancer de n |
Move forward n |
forward(n) |
|
Tourner de ⟲ Θ |
Turn from ⟲ Θ |
Θ > 0: left(Θ) Θ < 0: right(Θ) |
|
S’ orienter à Θ |
Orient yourself to Θ |
setheading(Θ) |
|
Aller à x; y |
Go to x; y |
goto(x,y) |
|
Stylo écrit |
Pen writes |
pendown() |
|
Stylo relevè |
Pen raised |
penup() |
|
Metire var á (Shown as expression → var) |
Set var to (Shown as expression → var) |
|
var = expression |
Demander valeur (Shown as ? → var) |
Ask for a value (Shown as ? → var) |
|
var = input(“optional prompt string” ) [float, eval, int, default is a string] |
Commenataire (shown as one of four comments) |
Comment out of four per-programmed strings |
|
print(“almost anything you want”) |
Afficher résult var |
Show result var |
|
print(var) |
Style |
Style (Style of Cursor) |
Turtle has a turtle character. Show or hide by showturtle()/hideturtle() |
|
Attendre |
Pause |
N/A |
N/A (though we can use an artificial for loop that does nothing) |
Répéter n ( ↑ ) |
Repeat n ( ↑ ) |
|
For i in range(n): |
Répéter jusqúa cond |
Repeat until cond |
|
While (not cond): |
Si Alors (Fin) |
If Then (End) |
|
If: structure |
Si Alors Sinon (Fin) |
If Then Else (End) |
|
If: Else: structure |
The four per-programmed strings are:
“Oui” Yes
“Non” No
“Nombre?” Number?
“Résultat :” Result :
Using a per-programmed string pauses the algorithm and requires a press of either [ OK ] or [ EXE ] to continue.
The fx-92 Collège offers to styles of cursors: Arrows (Fléche) or Cross (Criox)
The pixel screen of the fx-92 Collège is 191 x 48 pixels, with the x coordinates ranging from -95 to 96 and the y coordinates raging from -24 to 48.
The pixel screen (Turtle) for the Numworks is 320 x 222 pixels, with the x coordinates ranging from -160 to 160 and the y coordinates ranging from -111 to 111.
Drawing a Square
fx-92 Collège:
? →A
Stylo relevé
Avancer de A÷2 pixels
Stylo écrit
Tourner de ⟲ 90 degrés
Avancer de A÷2 pixels
Répéter 3
Tourner de ⟲ 90 degrés
Avancer de A pixels
↑
Tourner de ⟲ 90 degrés
Avancer de A pixels
Numworks:
from math import *
from turtle import *
print("Draw a Square")
s=eval(input("side length? "))
penup()
forward(s/2)
pendown()
left(90)
forward(s/2)
for i in range(3):
left(90)
forward(s)
left(90)
forward(s/2)
Drawing a Triangle
fx-92 Collège:
? →A
? →B
Stylo relevé
Aller à x= －A÷2 ; y= －B÷2
Stylo écrit
Aller à x= A÷2 ; y= －B÷2
Aller à x= 0 ; y= B÷2
Aller à x= －A÷2 ; y= －B÷2
Numworks:
from math import *
from turtle import *
print("Draw a Triangle")
s=eval(input("base? "))
h=eval(input("height? "))
penup()
goto(-s/2,-h/2)
pendown()
goto(s/2,-h/2)
goto(0,h/2)
goto(-s/2,-h/2)

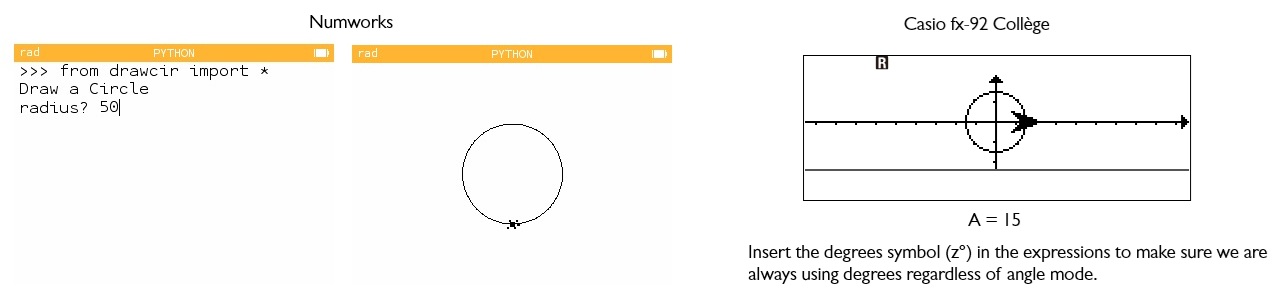

Drawing a Circle
fx-92 Collège:
? →A
Stylo relevé
Aller à x= A ; y= 0
Stylo écrit
0 →z
Répéter 120
z＋3 →z
Aller à x= A×cos(z°) ; y= A×sin(z°)
↑
Numworks:
from math import *
from turtle import *
print("Draw a Circle")
r=eval(input("radius? "))
penup()
right(90)
forward(r)
left(90)
pendown()
circle(r)
The Algorithmique (similar to Scratch) and Turtle language is comparable and these examples demonstrates similarities and differences of both languages.
Source
Casio. “Algorithmque/Programmation” (French)
https://www.casio-education.fr/algorithmique-programmation/ Retrieved January 26, 2025
